SPECIFICATIONS

Brand Name: YurHorse

Feature: Waterproof

Frame Material: Metal

Hign-concerned Chemical: None

Model Number: Voltage Display Electric Fence

Type: Fencing, Trellis & Gates

Description

5-10 KM Fence Charger Electric Fence Energizer for Livestock Horse Goat Pigs

Features:

【Technical Specifications】: AC fence charger, input voltage is 12V, output voltage is 12KV, energy storage is 2.5 Joules, and the output is voltage 2Joules. Electric fence energizer connects to fence lines, when energized, prevent predators from entering the farm and prevent poultry from climbing over the fence.

【Scope of Application】: DC fence energizer, the electrified distance of it can reach 5-10 miles (no weeds), and the coverage area can reach 100 acres (no weeds).

【LCD Power Display】: 2.5 Joules electric fence charger with LCD display - real-time display of input voltage and battery voltage level, ensuring you always know the status of the fence.

【Multiple Power Supply Modes】: 12KV electric fence energizer has a variety of power supply methods, such as AC direct connection, battery or a combination of solar panels and batteries. Choose the appropriate power supply method according to different application scenarios to meet usage needs.

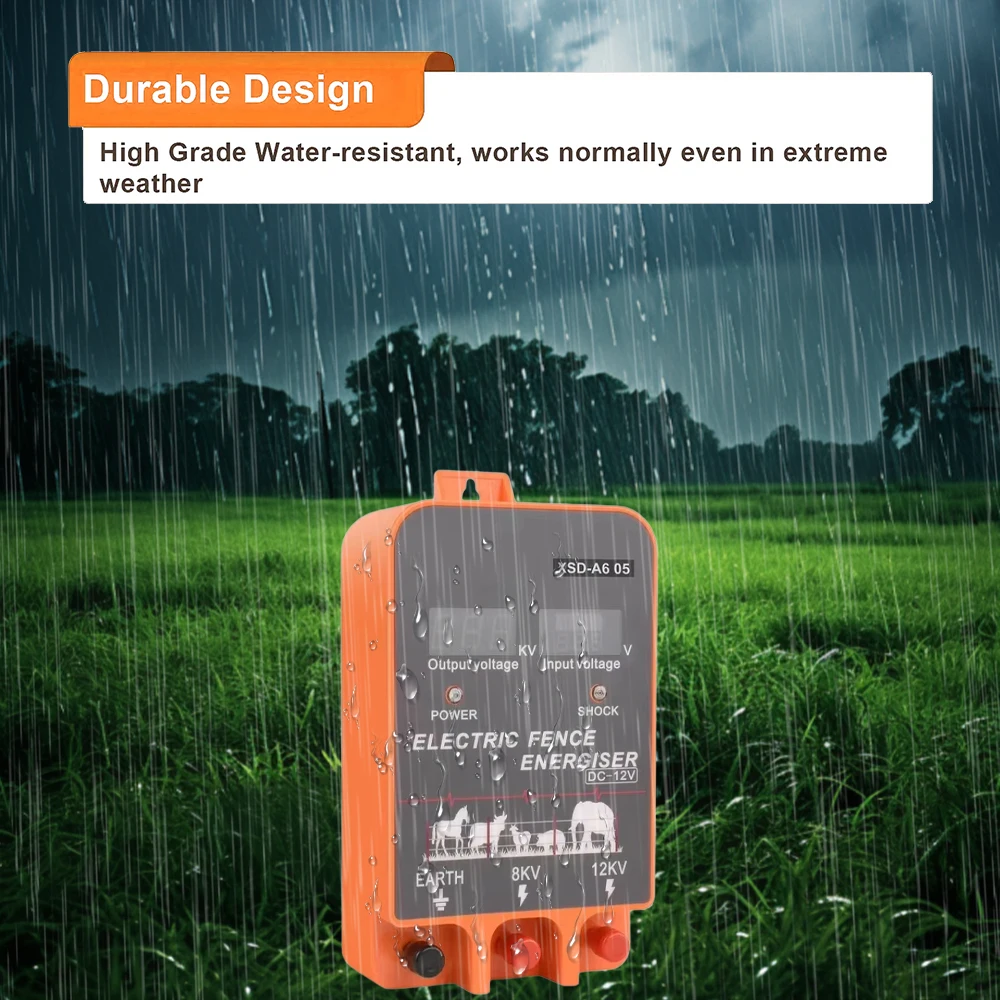

【 Waterproof】: Electric fence energizer designed to be waterproof, suitable for use in wet environments, makes it to be used normally even in extreme weather.

Specifications:

Size: As Shown

Input Voltage: DC12V

Input Current: >2A

Working Current: 100-700MA

Output Voltage: Peak 10KV

Pulse Duration: <0.1S

Pulse Interval: 1.3S

Energy Storage Capacity: 2.5J

Output Energy: 2J

Maximum Transmission Distance: 20KM

Best load Distance: within 5-10KM

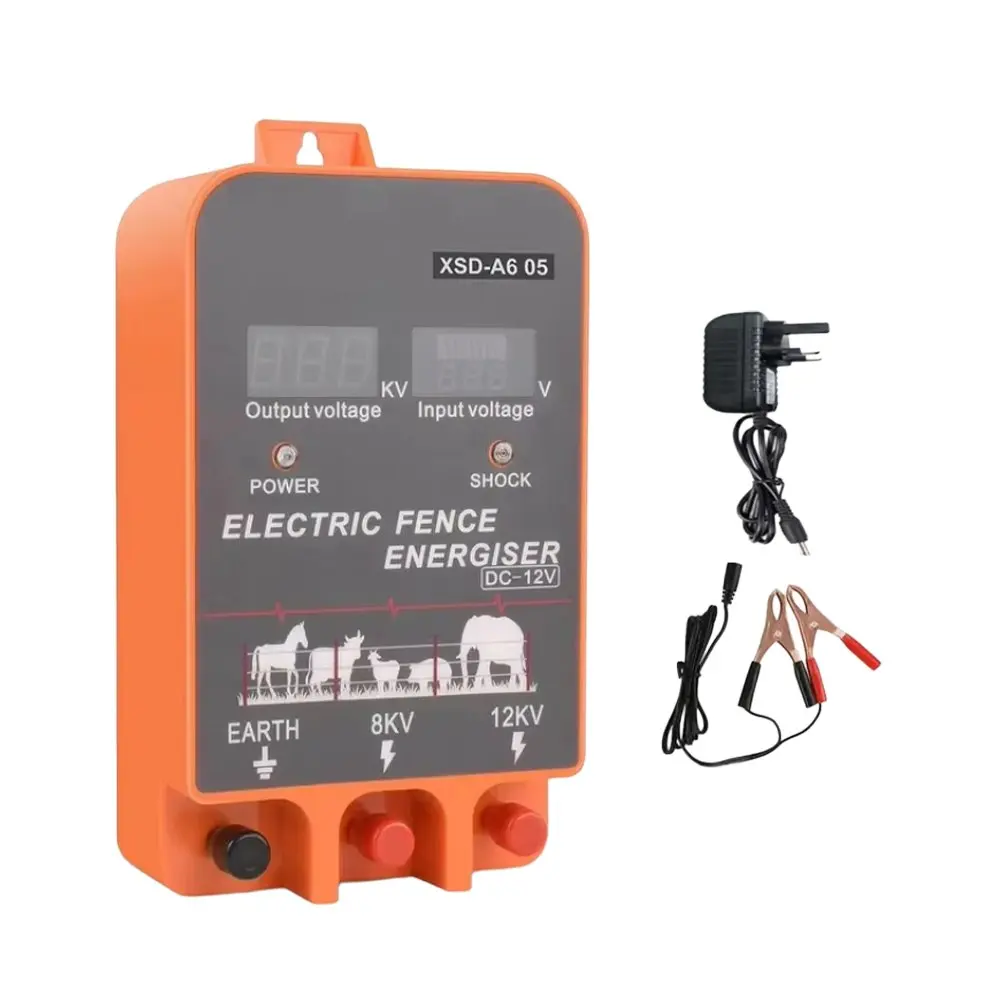

Package Included:

option A605:

1 x Main power supply for electric fence energizer

1 xPlug

1 x Battery Folder

1 x Manual

Notes:

The machine must be grounded firmly, and the grounding depth should not be less than 1.5 meters, otherwise the power converter or the host will be damaged.
